Kualitas 9um 12um 18um 35um Foil Tembaga Murni Lunak Elektronik pabrik

9um 12um 18um 35um Foil Tembaga Murni Lunak Elektronik

Nama Merek: OEM

Tempat Asal: CINA

Sertifikasi: ISO / SGS / RoHS

Jumlah pesanan minimum: 50kg

Harga: Bisa dinegosiasikan

Kemampuan pasokan: 550T Per Bulan

Waktu Pengiriman: 10 - 15 hari

Tanya Sekarang

Dapatkan Kutipan

Spesifikasi

Highlight Features

9um Foil Tembaga Murni

12um Foil Tembaga Murni

18um Foil Tembaga Murni

Aplikasi:

Elektronik

Ketebalan:

0,008mm--0,090mm

Lebar:

100-660mm

Bahan:

Tembaga Merah

Nilai:

Tembaga murni

Cu (min):

99,99%

Paduan atau tidak:

Non-paduan

Membentuk:

Gulungan

Jenis:

ra foil tembaga

Mencicipi:

Tersedia

Deskripsi produk

9um 12um 18um 35um Electronic Soft Pure Copper Foil

Deskripsi

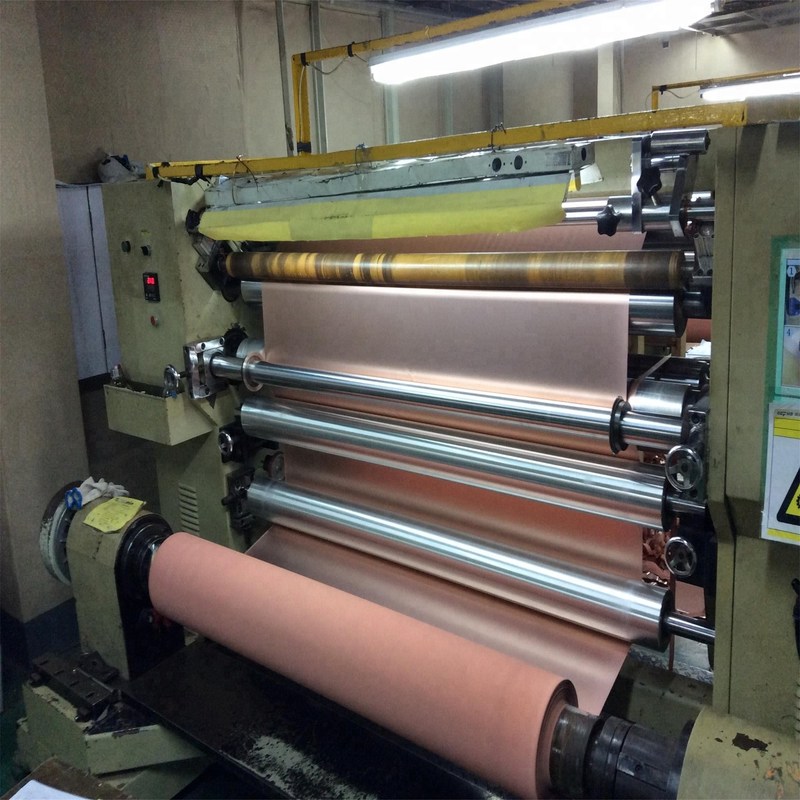

RA Copper Foil digulung dari barel tembaga murni, prosesnya termasuk memurnikan bijih tembaga, membuatnya menjadi katode tembaga, barel, gulung, penggilingan, cuci, pengujian, pemotongan dan pengemasan.Bijih tembaga kami diimpor dari Amerika Selatan, yang terkenal dengan pertambangan tembaga mereka.

Ini adalah tembaga berkualitas tinggi dan memiliki berbagai aplikasi berdasarkan konduktivitas, ketahanan korosi, kerja, dan keindahan.

110-anneal (Electrolytic Tough Pitch atau ETP) mati lunak. Min 99,96% CU

Artikel		Satuan	Ketebalan nominal
			9um	12um	18um	35um
Massa Per Unit		g/m2	80±3	107±3	153±5	305±5
Kemurnian	Cu	%	≥ 99.97
Keropositas permukaan	Sisi S	Ra um	≤ 0.2
	Sisi M	Rz um	0.8-1.5
Kekuatan tarik	Rm ((Hard)	N/mm2	420-440	450-470	460-480
	Rm(lembut)	N/mm2	160-180		180-220	200-230
Perpanjangan	A50 ((Hard)	%	0.8-1.2		0.8-1.3	1.0-1.5
	A50 (Soft)	%	≥ 5.0	≥ 6.0	≥ 8.0	≥ 100
Kekuatan Peel	A	N/mm	≥ 0.8		≥ 1.0	≥ 1.2
Ketahanan kimia		%	≤ 5
Ketahanan oksidasi	200°C	Min	60
Resistensi Solder	300°C	Sek.	20
Pinhole		EA	Tidak ada
Lebar		mm	100-660
Keakuratan Lebar		mm	0~ +2
Inti		/	3 in, 6 in, 80mm

Aplikasi

Foil Tembaga yang digulung memiliki kekuatan yang luar biasa, lentur, lentur dan permukaan berkilau, ditambah kapasitas mekaniknya yang sangat baik, membuatnya tidak tergantikan sebagai bahan baku.Terutama ketika digunakan untuk trafo, Konektor Fleksibel Tembaga, CCL, FCCL, PCB, Film Geothermal, Konstruksi, Dekorasi dll.
