Kualitas Lebar 520mm High Purity 25um Red ED Copper Foil pabrik

Lebar 520mm High Purity 25um Red ED Copper Foil

country of origin

Cina

Nama merek

OEM

Sertifikat

ISO / SGS / RoHS

MOQ

50 kg

unit price

negotiable

metode pembayaran

L / C, T / T

Supply Capacity

550T Per Bulan

Rincian produk

Menyoroti:

Foil Tembaga 18um ED

Foil Tembaga ED 25um

Foil Tembaga Terisolasi 25um

Purity: 99,8%

Anti Oxidation: 200 derajat 60 menit, 180 hari 23 derajat

Thickness: 18um 25um 35um

Color: Merah

Elongation: ≥ 5%

Tensile Strength: ≥ 180 MPa

Peel Strength: ≥ 1 N / mm

Foil Profile: RA≤2.5μm ， Rz≤4.0μm

Standard Width: 520mm

Max Width: 1295 (± 1) mm

Deskripsi Produk

Detailed Specifications & Features

Lebar 520mm Foil Tembaga ED Merah Kemurnian Tinggi

Fitur:

1. foil yang diolah dalam warna abu-abu atau merah

2. Profil tinggi dengan properti yang sesuai untuk FCCL

3. Struktur butiran foil tembaga mengarah pada fleksibilitas tinggi

4. Performa etsa yang sangat baik

5. profil rendah memungkinkan untuk membuat pola sirkuit halus

Aplikasi:

1. Jenis pengecoran dan laminasi FCCL

2. FPC pola super halus

3. Chip on flex (COF) untuk LED

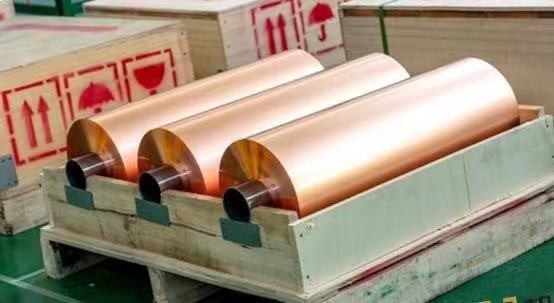

Lebar 520mm High Purity 25um Red ED Copper Foil 0

Sifat khas foil tembaga elektrolitik LP-SB / R ED (untuk FPC atau lapisan dalam HDI)

Klasifikasi		Satuan	Kebutuhan							Metode Tes
Penunjukan Foil		/			1	H.	M		1	IPC-4562A
Ketebalan nominal		/	10um		12um	1/2 OZ (18um)	3/4 OZ (25um)		1 OZ (35um)	IPC-4562A
Berat Area		g / ㎡	98 ± 4		107 ± 4	153 ± 5	228 ± 8		285 ± 10	IPC-TM-650 2.2.12.2
Kemurnian		％	≥99.8							IPC-TM-650 2.3.15
Profil Foil	Sisi mengkilap (Ra)	ս m	≤2.5	≤2.5		≤2.5		≤2.5	≤2.5	IPC-TM-650 2.3.17
	Sisi Matte (Rz)	um	≤4.0	≤4.5		≤5.5		≤6.0	≤8.0
Daya tarik	RT (23 ℃)	Mpa	≥260	≥260		≥280		≥280	≥280	IPC-TM-650 2.3.18
	HT (180 ℃)	Mpa	≥180	≥180		≥180		≥180	≥180
Pemanjangan	RT (23 ℃)	％	≥5	≥6		≥8		≥10	≥12	IPC-TM-650 2.3.18
	HT (180 ℃)	％	≥5	≥6		≥7		≥8	≥8
Kekuatan Kupas (FR-4)		N / mm	0.7	0.8		1.0		1.1	1.2	IPC-TM-650 2.4.8
		Ibs / in	4	4.6		5.7		6.3	6.9
Lubang kecil & porositas		Jumlah	Tidak							IPC-TM-650 2.1.2
Anti-oksidasi		RT (23 ℃)	180 hari							/
		HT (200 ℃)	60 menit							/

1. Lebar Standar 520mm, lebar maks 1295 (± 1) mm, Dapat disesuaikan dengan permintaan pelanggan.

Kami menguji kekuatan kulit dengan PI, harap konfirmasi ulang dengan pp Anda.
