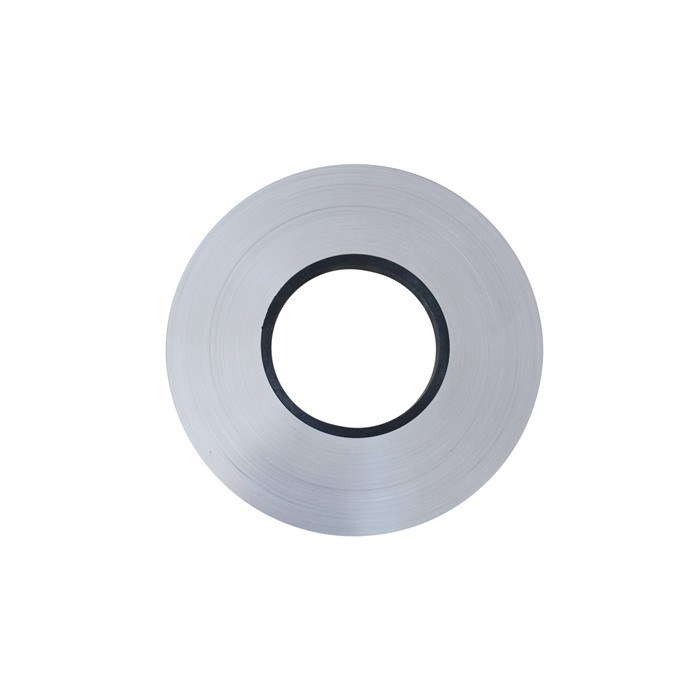

Double Sided Thickness 0.01mm Tin Disepuh Copper Foil
Foil Tembaga Berlapis Timah 0.01mm
,Foil Tembaga Berlapis Timah 0.15mm
,Foil Tembaga Berlapis Timah 300mm
Double Sided Thickness 0.01mm Foil Tembaga Berlapis Timah
1. Deskripsi
Foil tembaga berlapis timah terutama permukaan yang dipecahkan tidak mulus dan ketebalannya tidak merata ketika foil tembaga biasa dilapiskan.Ini memiliki kekuatan kulit yang tinggi pada permukaan yang dilaminasi karena beberapa perlakuan khusus.Seluruh proses dilakukan dalam suhu kamar dan tidak akan mengubah struktur logam.
2. Kapasitas:
- Ketebalan timah sesuai kebutuhan pelanggan;Laminasi satu sisi juga ok.
- Seragam toleransi lapisan laminasi m;Keseragaman ketebalan material bagus
- Material Surface halus dan rata ；
- Solderabilitas yang baik dapat dijamin untuk kualitas standar kami, bahkan setelah periode penyimpanan yang lebih lama.
- Strip dengan ketebalan ＞ 0.05mm juga dapat diberikan di grade halfhard dan hard berdasarkan permintaan.
3. Spesifikasi
| Barang | Satuan | Ukuran | ||||
| Ketebalan | mm | > 0,01 | 0,02 | > 0,05 | > 0,1 | > 0,15 |
| Lebar | mm | 3-300 | 1-320 | 1-320 | 1-190 | 4-190 |
| Ketebalan tomerans | ± 10% | ± 10% | ± 10% | ± 10% | EN1652 | |
| Toleransi lebar | EN1652 | |||||
| Panjang strip³⁾ [kg / mm] | Bergantung pada ketebalan dan lebar | |||||
Satu Sisi Merah Tebal 12um Copper Foil Rolls
Single Side Red Thickness 12um Copper Foil Rolls Quickly details . Low profile and Single side side treatment in red. . Thickness: 12um . Width: ≤520 mm . Length: ≤5000 M . ID: 76 mm,152 mm . Alloy: C11000 Features: 1. Red color 2. Good performance in resistant to bending suitable for FCCL. 3. High density performance leads to high flexibility Application: Suitable for FCCL, FPC, COVERLAY, BONDING FILM TDS for FPC FCCL with all thickness. Thickness 0.10/0.012/0.018/0.025/0
C1100 C1020 C1220 Transformer Strip, Foil Tembaga Tipis
C1100 C1020 C1220 Transformer Strip Thin Copper Foil Product Details 1. Grade:C1100,C1020,C1220 2. Thickness:0.005-1.2mm 3. Width:400mm max 4. Chemincal composition: C1100:Cu≥99.9%;C1020:Cu≥99.96%;C1220:Cu≥99.97% P:0.015-0.04% 5. Oxgen content:C1100:O80% Applications 1. Electric and electric springs switches 2. Lead frames 3. Connectors and oscillation reeds 4. PCB field 5. Communication cable 6. Cable armoring 7. Mobile phone main board 8. Ion battery production lamination
Foil Tembaga Gulung Merah Elektrodeposit Rolled 99,9%
99.9% Purity Red Rolled Electrodeposited Copper Foil Description: Electrolytic copper foil is a foil-based form of copper with a thickness generally less than 80micron. A rolled foil is made by annealing and rolling the electrolytic copper uninterruptedly.The production process involves electrodepositing copper to a rolling drum and then again rolling it up. For the process of electrodeposition, high-grade copper is dissolved in acid to form a copper electrolyte. This copper
Lebar Kekuatan Kupas Tinggi 520mm C11000 Foil Tembaga Terisolasi
High Peel Strength Width 520mm C11000 Insulated Copper Foil Quickly details Thickness: 0.012-0.070 mm Width: 5-520 mm Length: 500-5000 M ID: 76 mm,152 mm Alloy: T2,C11000,C1100,C101,E-Cu58 Temper: H Features: 1. the treated foil in gray or red 2. High peel strength 3. Good etch ability 4. Excellent adhesion to etching resist Application: 1. Phenolic resin board 2. Epoxy board Compare between CA copper foil and ED copper foil 1. Process: rolled copper foil (Rolling process),ED
