kualitas Lebar Foil Tembaga Murni Elektrodeposit 1295mm ED pabrik

Lebar Foil Tembaga Murni Elektrodeposit 1295mm ED

country of origin

Cina

Brand Name

OEM

Sertifikat

ISO / SGS / RoHS

MOQ

50 kg

unit price

negotiable

payment method

L / C, T / T

Supply Capacity

550T Per Bulan

Product Details

Menyoroti:

1295mm Electrodeposited Copper Foil

lembaran tembaga 70um pcb

lembaran tembaga 35um pcb

Product Name: S - HTE ED Foil Tembaga

Alloy Number: C11000

Material: Tembaga merah

Shape: Ukuran roll

Density: 8.9g / cm3

Thickness: 1 / 4OZ ~ 2OZ (9μm ~ 70μm)

Width: 550mm ~ 1295mm

Application: PCB

HS Code: 7410110000

Ra Value: ≤0,4μm

Product Description

Detailed Specifications & Features

Lebar 1295mm ED Foil Tembaga Elektrodeposit Murni

Spesifikasi:

Sebagai bahan industri elektronik yang tak tergantikan, kritis, dan dasar, foil tembaga ED terutama digunakan dalam produksi CCL, PCB, dan Baterai Sekunder Li-ion.Dengan pengembangan multi-fungsi, ukuran kecil, dan bobot ringan dari produk lengkap informasi elektornik, foil tembaga berkualitas tinggi, kinerja khusus, dan ED yang unggul akan menjadi produk terkemuka untuk memenuhi persyaratan pelanggan.

Rentang Demensi:

Ketebalan: 0,009mm ~ 0,070mm

Lebar: 550mm ~ 1295mm

Data teknis:

Klasifikasi		Satuan	1 / 4OZ (9μm)	1 / 3OZ (12μm)	J OZ (15μm)	1 / 2OZ (18μm)	1OZ (35μm)	2OZ (70μm)
Konten Cu		%	≥99.8
Berat Area		g / m2	80 ± 3	107 ± 3	127 ± 4	153 ± 5	283 ± 5	585 ± 10
Daya tarik	RT (25 ℃)	Kg / mm2	≥28	≥30
	HT (180 ℃)		≥15
Pemanjangan	RT (25 ℃)	%	≥4.0	≥5.0	≥6.0		≥10
	HT (180 ℃)		≥4.0		≥5.0	≥6.0
Kekasaran	Shiny (Ra)	μm	≤0.4
	Matte (Rz)		≤5.0	≤6.0	≤7.0	≤7.0	≤9.0	≤14
Kekuatan Kupas	RT (23 ℃)	Kg / cm	≥1.0	≥1.2	≥1.2	≥1.3	≥1.8	≥2.0
Tingkat HCΦ yang terdegradasi (18% -1jam / 25 ℃)		%	≤5.0
Perubahan warna (E-1.0hr / 190 ℃)		%	Baik
Solder Floating 290 ℃		Detik.	≥20
Lubang jarum		EA	Nol
Preperg		----	FR-4

Karakteristik:

1. Permukaan tanpa noda dan kontaminasi tembaga, area geser halus.

2. Tidak ada daya geser atau tanda geser.

3. Dengan perpanjangan tinggi dan tidak ada lubang jarum dan titik kebocoran.

4. Disetujui oleh standar internasional IPC-4562

5. Kinerja noda anti-oksidasi tempuratur tinggi

6. Kinerja elongasi tinggi

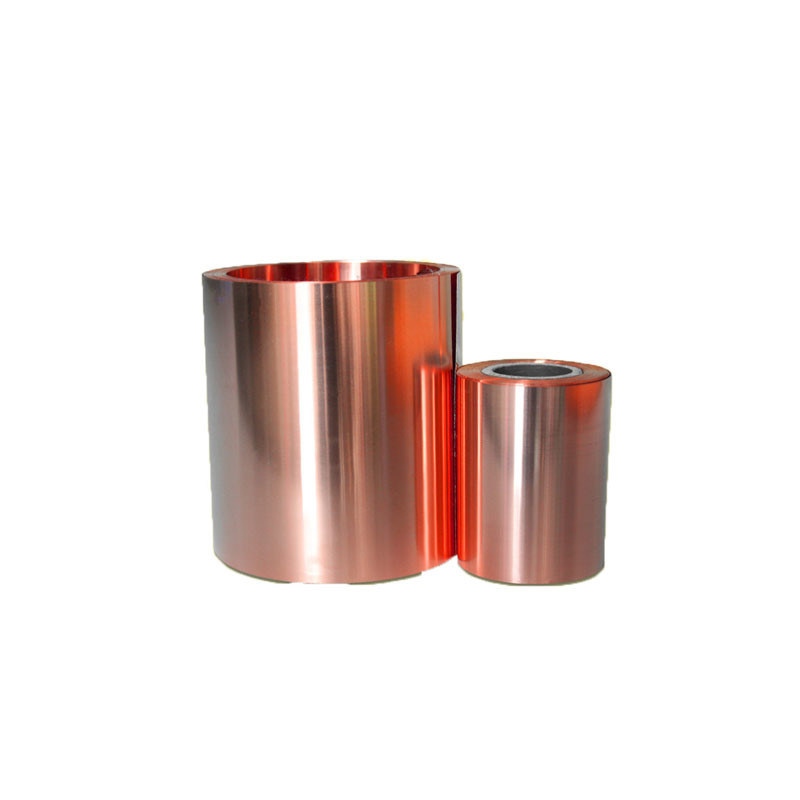

Lebar Foil Tembaga Murni Elektrodeposit 1295mm ED 0

Mengapa Memilih kami sebagai pemasok Anda?

1. Reputasi yang baik di bidang Cu.
2. Pengalaman penuh dalam bekerja sama dengan perusahaan besar terkemuka di dunia, seperti Samsung, BYD
3. Dengan sertifikat ISO, ROHS, CTI dan SGS.
4. Pengiriman tepat waktu.
5. Kualitas barang yang sempurna dengan semua sertifikat pabrik.
6. Keterampilan komunikasi yang baik, pelayanan yang baik untuk memahami kebutuhan Anda.
7. Paket layak laut yang kuat.
