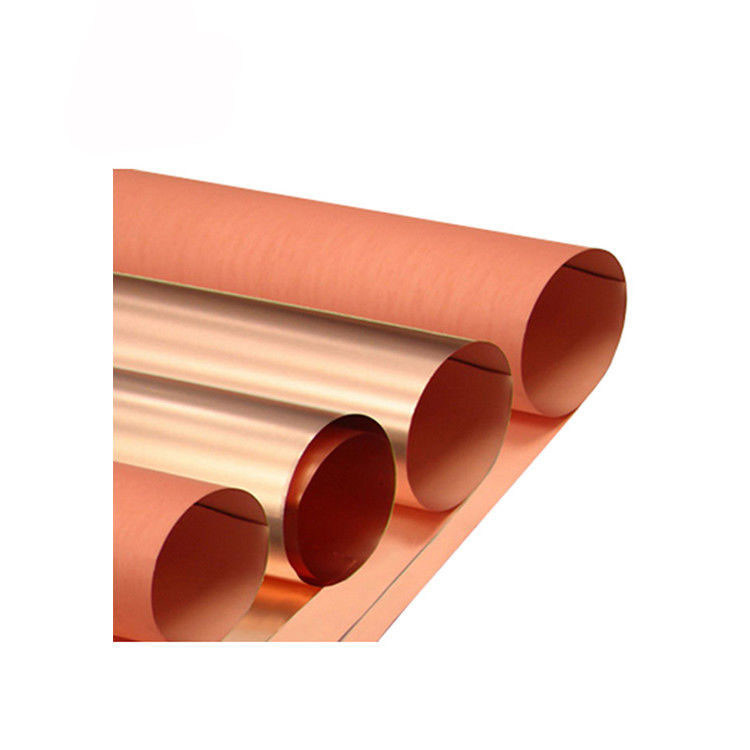

Kendaraan Listrik Baterai Lithium Ion Murni 20um Tembaga Foil
Foil Tembaga Baterai Lithium Ion 20um
,Foil Tembaga Baterai Lithium Ion 1380mm
,Foil Tembaga Baterai Lithium Ion 5mm
Kendaraan Listrik Foil Tembaga Baterai Lithium Ion 20um Murni
| Tipe | Foil Tembaga Baterai Lithium |
| Rentang Ketebalan | 20 um |
| Rentang Lebar | 5-1380 mm |
| Performa | Struktur simetris kedua sisi |
| Massa jenis logam mendekati massa jenis teoritis tembaga | |
| Profil permukaan yang sangat rendah, perpanjangan tinggi dan kekuatan tarik | |
| Aplikasi | Digunakan untuk pembawa katoda baterai Li-ion dan pengumpul arus. |
| XEV: kendaraan hybrid-listrik. (HEV) | |
| Kendaraan listrik hibrida paralel (PHEV) | |
| Kendaraan listrik (EV) | |
| Pembawa katoda baterai Li-ion dan pengumpul arus |
Fitur:
1. Sifat stabil cocok untuk baterai isi ulang berkapasitas tinggi.
2. Produk dan proses ramah lingkungan.
Bandingkan antara foil tembaga CA dan foil tembaga ED
1.Proses: foil tembaga digulung (proses penggulungan), foil tembaga ED (proses elektrodeposisi)
2. Kekuatan ketangguhan: foil tembaga yang digulung adalah struktur kristal yang terkelupas, sehingga kekuatan dan ketangguhannya lebih baik daripada foil tembaga elektrolitik, sehingga sebagian besar foil tembaga yang digulung digunakan pada papan sirkuit cetak yang fleksibel.
Sifat khas baterai lithium foil tembaga ED elektrolitik
| Klasifikasi | Satuan | Kebutuhan | Metode Tes | |||||||
| Penunjukan Foil | / | IPC-4562A | ||||||||
| Ketebalan nominal | / | 6um | 7um | 8um | 9 / 10um | 12um | 15um | 20um | IPC-4562A | |
| Berat Area | g / ㎡ | 54 ± 1 | 63 ± 1,25 | 72 ± 1.5 | 89 ± 1.8 | 107 ± 2.2 | 133 ± 2.8 | 178 ± 3,6 |
IPC-TM-650 2.2.12.2 |
|
| Kemurnian | ％ | ≥99.9 |
IPC-TM-650 2.3.15 |
|||||||
| Profil Foil | Sisi mengkilap (Ra) | um | 0,1-0,4 |
IPC-TM-650 2.3.17 |
||||||
| Sisi Matte (Rz) | um | 0.8-2.0 | ||||||||
| Daya tarik | RT (23 ℃) | Mpa | ＞ 280 |
IPC-TM-650 2.3.18 |
||||||
| HT (180 ℃) | ＞ 200 | |||||||||
| Pemanjangan | RT (23 ℃) | ％ | ＞ 5 |
IPC-TM-650 2.3.18 |
||||||
| HT (180 ℃) | ＞ 3 | |||||||||
| Lubang kecil & porositas | Jumlah | Tidak |
IPC-TM-650 2.1.2 |
|||||||
| Anti-oksidasi | RT (23 ℃) | hari | 90 | / | ||||||
| HT (160 ℃) | Menit | 15 | / | |||||||
FAQ:
Q1: Apa jaminan Anda?
A: Semua produk kami memiliki garansi 6 bulan setelah menerima barang, jika ada masalah kualitas dapat menghubungi kami.
Q2: Apa waktu pengiriman Anda?
A: Waktu pengiriman spesifik tergantung pada barang dan jumlah pesanan Anda. Umum: 5-15days
Q3: Berapa jumlah pesanan minimum Anda?
A: MOQ adalah 100 kg.
