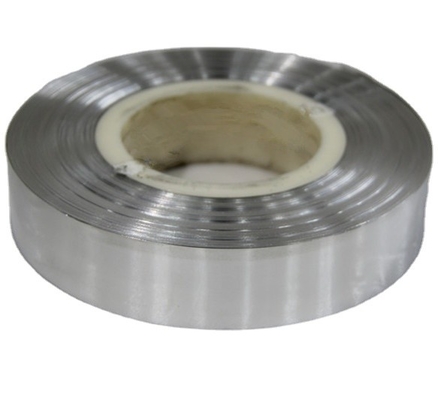

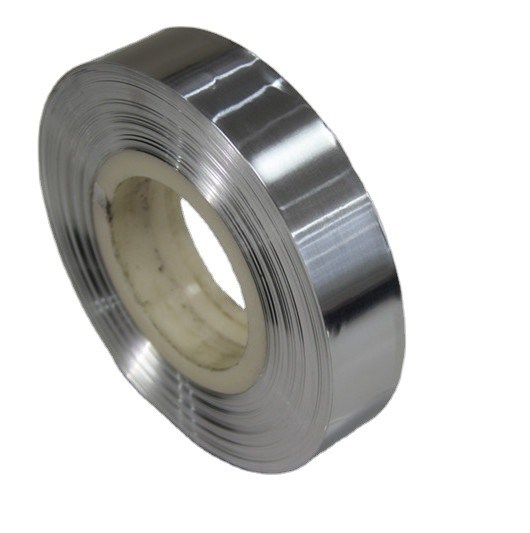

C1100 Foil Tembaga Berlapis Nikel

Nama Merek: OEM
Tempat Asal: CINA
Sertifikasi: ISO / SGS / RoHS
Jumlah pesanan minimum: 50kg
Harga: Bisa dinegosiasikan
Kemampuan pasokan: 550T Per Bulan
Waktu Pengiriman: 10 - 15 hari
Tanya Sekarang
Dapatkan Kutipan
Spesifikasi
Highlight Features

Foil Tembaga Berlapis Nikel Murni

,

C1100 Foil Tembaga Berlapis Nikel

,

Foil Tembaga Berlapis Nikel tahan korosi

Aplikasi:
Elektronik
Lebar:
0,07-60mm
Bahan:
Tembaga Merah
Paduan atau tidak:
Adalah paduan
Kekerasan:
Lembut Keras, keras
Kemasan:
Kayu
Nama Produk:
strip tembaga
Ukuran:
Disesuaikan
Nilai:
C1100
Jenis:
Jalur Nikel
Deskripsi produk
C1100 Foil Tembaga Berlapis Nikel



Deskripsi Produk



Tembaga: T2(C1100)
Elemen paduan
Cu+Ag
Bi
Sb
As
Fe
Pb
S
…
Tembaga/T2
99.98
0.001
0.002
0.002
0.001
0.005
0.005






Kemurnian tinggi, kandungan oksigen rendah, konduktivitas listrik yang sangat baik, cocok untuk pemukulan halus, jalur termal dan listrik yang baik, pemrosesan, keuletan, ketahanan korosi, dan kemampuan cuaca.

Resistivitas (Ωm㎡/m)
 ≦0.024
Perpanjangan(%)
 15～30
Kekuatan tarik (MPa)

150-170
Kekuatan kupas (N/mm)
＞12
Kekerasan permukaan (HV 0.3)
76/37

Aplikasi

Manufaktur mesin dan peralatan, elektronik, peralatan listrik, komputer, bagian produk berteknologi tinggi, etsa, suku cadang mobil, perlengkapan dapur, gasket penyesuaian, bagian stamping logam pegas pecahan peluru, foil baja tahan karat untuk industri pengemasan



Keuntungan



1. fungsi pengelasan yang baik
2. anti-interferensi elektromagnetik
3. harga murah
4. dengan volatilitas kimia yang tinggi, dalam asam sulfat, asam nitrat, larutan encer asam klorida hanya tidak larut.

C1100 Foil Tembaga Berlapis Nikel 0
